Manufacture of wireless communication equipment (location information collection terminal/electronic/communication device)

Electronic products/electronic parts wholesale/retail, A, S/service, etc. and other wireless communication equipment manufacturers

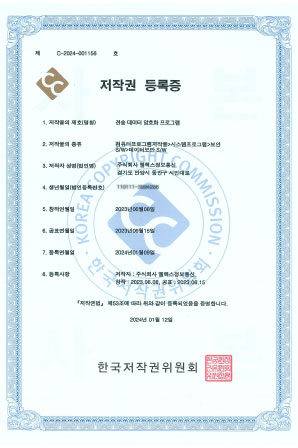

Copyright Registration Certificate / Data Transmission Encryption Program

Copyright Registration Certificate / Data Transmission Encryption Program

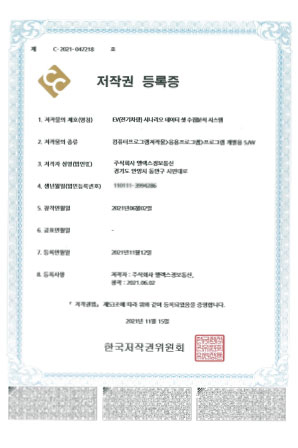

Copyright Registration Certificate / EV (Electric Vehicle) Scenario Dataset Collection and Analysis System

Copyright Registration Certificate / EV (Electric Vehicle) Scenario Dataset Collection and Analysis System

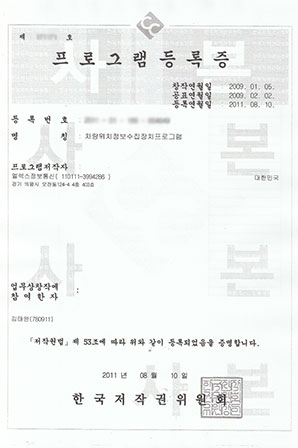

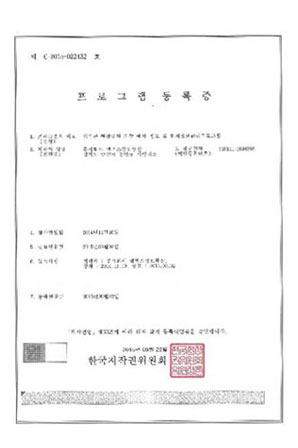

Program Registration Certificate / Vehicle Location Information Collection Device Program

Program Registration Certificate / Vehicle Location Information Collection Device Program

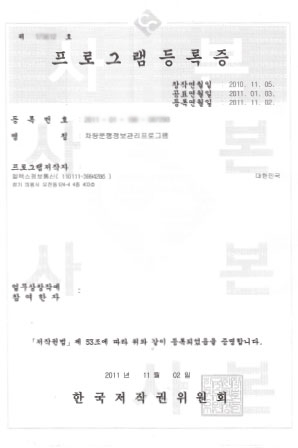

Program Registration Certificate / Vehicle Driving Information Management Program

Program Registration Certificate / Vehicle Driving Information Management Program

Program Registration Certificate / Polygon Position Detection Software

Program Registration Certificate / Polygon Position Detection Software

Program Registration Certificate / Ready-mixed concrete location information and software

Program Registration Certificate / Ready-mixed concrete location information and software

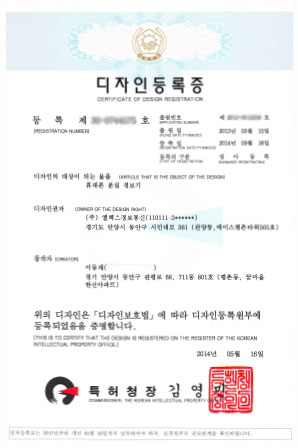

Design Registration Certificate / Mobile Phone Loss Alarm

Design Registration Certificate / Mobile Phone Loss Alarm

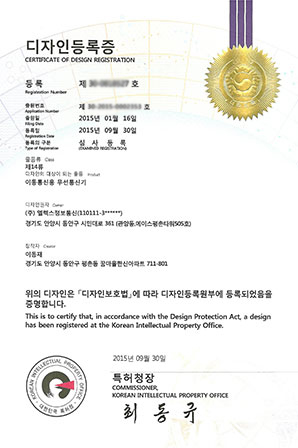

Design Registration Certificate / Wireless Communication Device for Mobile Communication

Design Registration Certificate / Wireless Communication Device for Mobile Communication

Design Registration Certificate / Terminal for big data collection

Design Registration Certificate / Terminal for big data collection

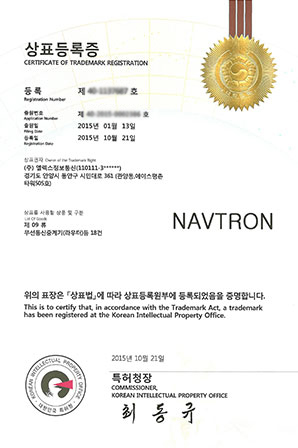

Trademark Registration Certificate / 18 cases, including wireless communication repeaters (router)

Trademark Registration Certificate / 18 cases, including wireless communication repeaters (router)

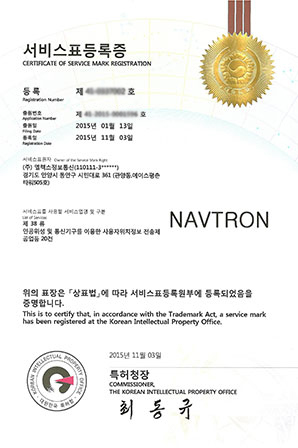

Service Mark Registration Certificate / 20 cases including user location information transmission and provision business using satellites and communication devices

Service Mark Registration Certificate / 20 cases including user location information transmission and provision business using satellites and communication devices

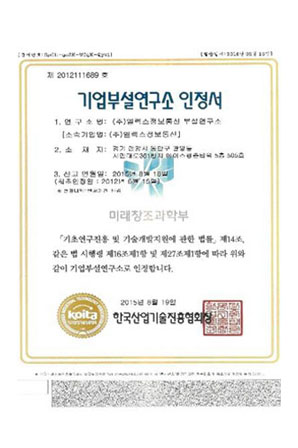

Company-Affiliated Research Lab

Company-Affiliated Research Lab

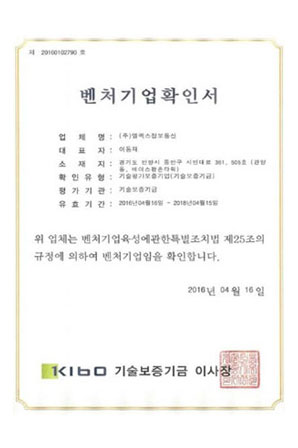

Venture Company Confirmation

Venture Company Confirmation

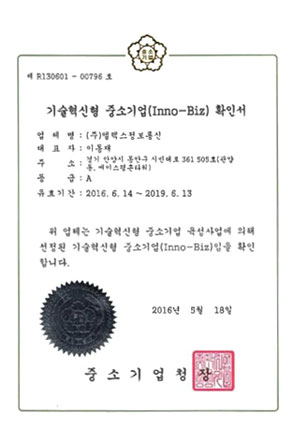

Technology Innovation Small and Medium Business / Inno-Biz

Technology Innovation Small and Medium Business / Inno-Biz

Main-Biz Small and Medium-sized Enterprise (SME) / Main-Biz

Main-Biz Small and Medium-sized Enterprise (SME) / Main-Biz

Location Information Business Permit

Location Information Business Permit

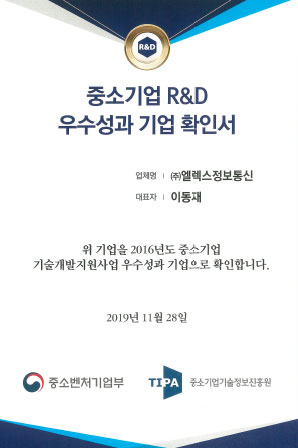

Certificate of Excellence in SME R&D Performance

Certificate of Excellence in SME R&D Performance

Certificate of Designation of Innovative Product

Certificate of Designation of Innovative Product

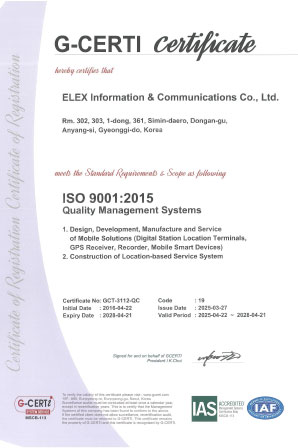

Quality assurance / ISO9001

Quality assurance / ISO9001

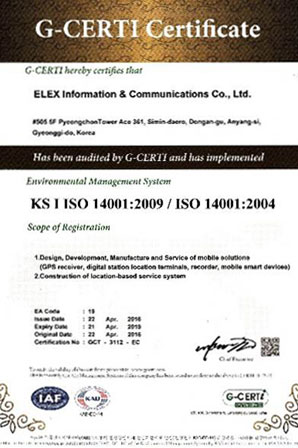

Environmental management system / ISO14001

Environmental management system / ISO14001

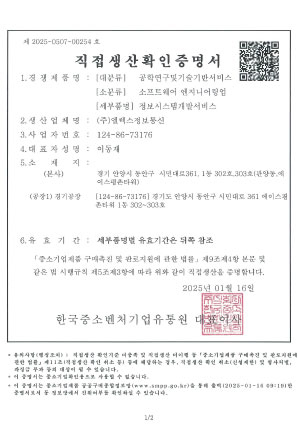

Certificate of Direct Production Confirmation

Certificate of Direct Production Confirmation

Directions
Room 303, 3rd floor, Ace Pyeongchon Tower, 361 Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do
Item Spec
Processor ARM Core
Memory Extension : Nand Flash 64Mbyte
Internal : Flash 256Kbyte, Ram 48Kbyte
USB Full speed (12Mbit/s) -Mass Stroage used (client)
Peripheral UART Output 2 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
Frequency : L1 1574.42MHz
LTE Module LIMEI : LML-M101 (LG U+)
I/O Internal Input 3 Button (button input)
External Input 4 Port
Bluetooth V2.1 + EDR (Opion)
LED 6 LED (Status Display)
G sensor Sensing extension shock
CAN SN65HVD230 - 3.3V supply, 370uA
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 200㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 122(W) x 77(H) x 24(D) (mm)
Item Spec
Processor ARM Core
Memory Extension : Nand Flash 64Mbyte
Internal : Flash 256Kbyte, Ram 48Kbyte
USB Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral UART Output 2 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
Frequency : L1 1574.42MHz
LTE Module Quectel : BG96 (SKT)
Teladin : TM700 (KT)
I/O Internal Input 3 Button (button input)
External Input 4 Port
Bluetooth V2.1 + EDR (Opion)
LED 6 LED (Status Display)
G sensor Sensing extension shock
CAN SN65HVD230 - 3.3V supply, 370uA
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 200㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 122(W) x 77(H) x 24(D) (mm)
Item Spec
Processor ARM926EJ-S-Embedded Linux
Memory Nand Flash 125Mbyte
Ram 125Mbyte(DDR2)
USB Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral UART Output 2 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
GPS Frequency : L1 1574.42MHz
LTE Module LIMEI : LML-M101 (LG U+)
I/O Internal Input 3 Button (button input)
External Input 4 Port
Bluetooth V2.1 + EDR (Opion)
LED 6 LED (Status Display)
G sensor Sensing extension shock
CAN SN65HVD230 - 3.3V supply, 370uA
Ethernet 10/100 BASE-T (1-Port)
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 220㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 122(W) x 77(H) x 24(D) (mm)
Item Spec
Processor ARM Core
Memory Extension : Nand Flash 64Mbyte
Internal : Flash 256Kbyte, Ram 48Kbyte
USB Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral UART Output 1 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
Frequency : L1 1574.42MHz
LTE Module Quectel : BG96 (SKT / LG U+)
LED 2 LED (Status Display)
G sensor Sensing extension shock
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 200㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 83(W) x 62(H) x 17(D) (mm)
