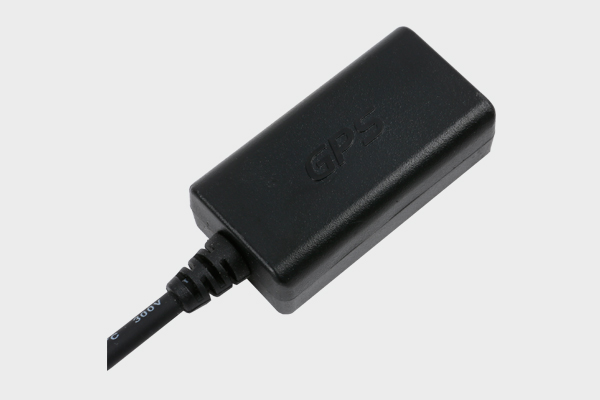

ACC GPS

Built with a high-performance GPS chip, it uses low power for operation and supports 65 channels.

  • Detects satellites for 51 channels.
  • Practical use. - Uses 14 channels (Making more accurate coordinate reading possible).
  • High sensitivity of 161 dBM.
  • 1 Hz update rate.
Specification

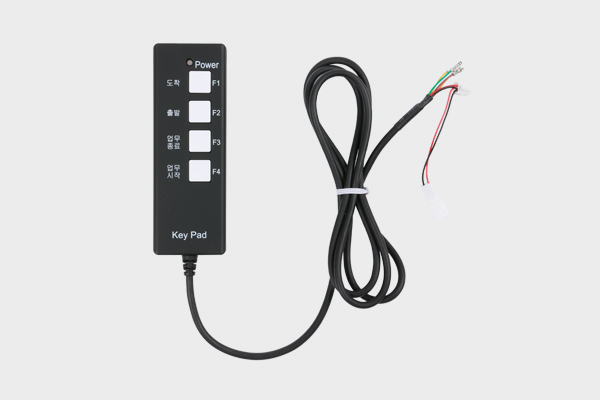

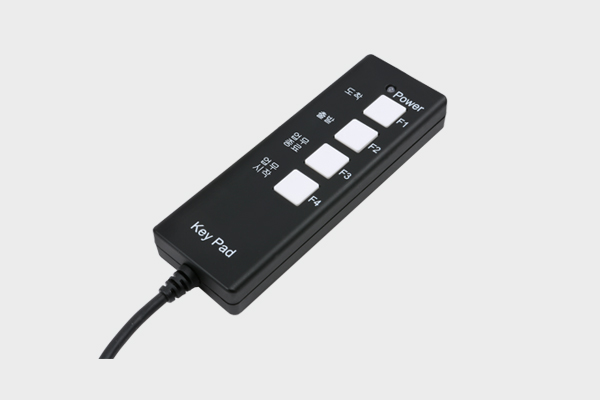

ACC Keypad

A device that transmits data between drivers and managers by setting specific messages to make vehicle operation information clearer.

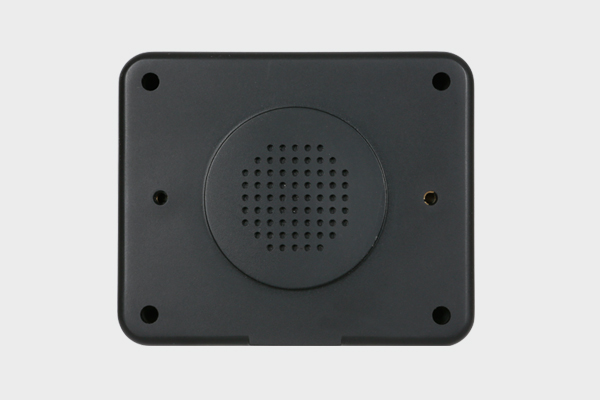

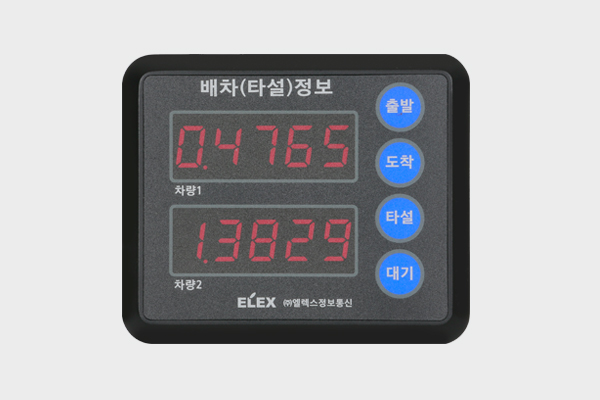

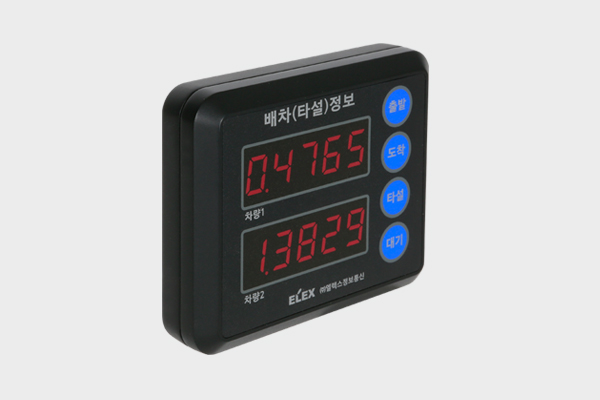

ACC Display

This is a device that can deliver data in even faster real time due to a driver that can directly convey information to the manager using a set button method, enabling quick and clear progress in dispatching vehicles.

  • 4 Buttons allow you to understand the driver’s work in real time (Configurable).
  • Display function allows T-Trip (sectional distance) and D-Trip (daily distance) to be expressed as GPS distance.

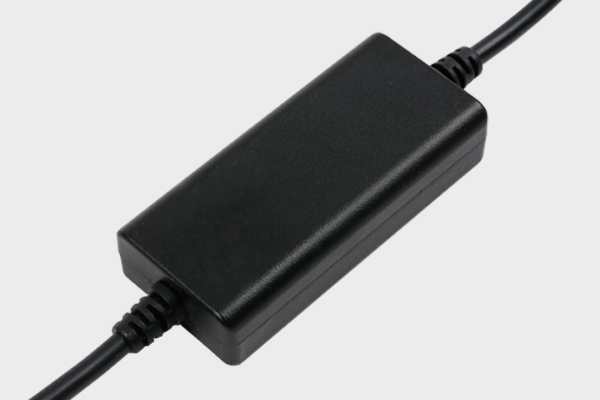

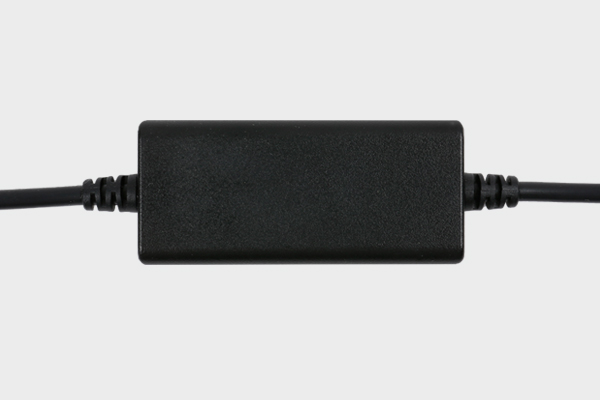

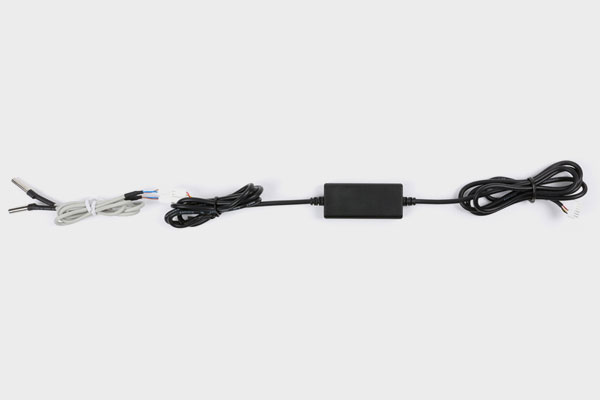

ACC Temperature Senssor

A device that measures real-time temperature around vehicles and industrial sites and converts that temperature into a digital signal.

Directions
Room 303, 3rd floor, Ace Pyeongchon Tower, 361 Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do
Item Spec
Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz CHIP RATE
Acquisition Engine 51 Channel
Tracking Engine 14 Channel
Position 2.5m CEP
Velocity 0.1 m/s
Time pulse 1PPS
Protocol NMEA-0183 Version 3.01
Hot Start <1sec., Autonomous
Warm Start <29sec., Autonomous
Cold start <29sec., Autonomous
Tracking Sensitivity -161dBm typical
Re-acquisition -157dBm typical
Cold start -148dBm typical
Altitude 18,000m (Max)
Velocity 515m/s (Max)
Acceleration Less than 4G
Voltage +5V ±0.3V
Supply current Tracking 40mA 5V DC typical
Backup Battery Power 3.0V / 10uA (include)
Elrctrical interface Full dupiex serial communication
Baud Rate 9,600bps, 8, 1, n
Navigation updata rate 1Hz
Protocol Message NMEA-0183
Operation range -30℃ ~ +85℃
Storage range -40℃ ~ +85℃
Relative humidity 5% ~ 80%
Item Spec
Processor ARM Core
Memory Extension : Nand Flash 64Mbyte
Internal : Flash 256Kbyte, Ram 48Kbyte
USB Full speed (12Mbit/s) -Mass Stroage used (client)
Peripheral UART Output 2 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
Frequency : L1 1574.42MHz
LTE Module LIMEI : LML-M101 (LG U+)
I/O Internal Input 3 Button (button input)
External Input 4 Port
Bluetooth V2.1 + EDR (Opion)
LED 6 LED (Status Display)
G sensor Sensing extension shock
CAN SN65HVD230 - 3.3V supply, 370uA
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 200㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 122(W) x 77(H) x 24(D) (mm)
Item Spec
Processor ARM Core
Memory Extension : Nand Flash 64Mbyte
Internal : Flash 256Kbyte, Ram 48Kbyte
USB Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral UART Output 2 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
Frequency : L1 1574.42MHz
LTE Module Quectel : BG96 (SKT)
Teladin : TM700 (KT)
I/O Internal Input 3 Button (button input)
External Input 4 Port
Bluetooth V2.1 + EDR (Opion)
LED 6 LED (Status Display)
G sensor Sensing extension shock
CAN SN65HVD230 - 3.3V supply, 370uA
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 200㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 122(W) x 77(H) x 24(D) (mm)
Item Spec
Processor ARM926EJ-S-Embedded Linux
Memory Nand Flash 125Mbyte
Ram 125Mbyte(DDR2)
USB Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral UART Output 2 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
GPS Frequency : L1 1574.42MHz
LTE Module LIMEI : LML-M101 (LG U+)
I/O Internal Input 3 Button (button input)
External Input 4 Port
Bluetooth V2.1 + EDR (Opion)
LED 6 LED (Status Display)
G sensor Sensing extension shock
CAN SN65HVD230 - 3.3V supply, 370uA
Ethernet 10/100 BASE-T (1-Port)
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 220㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 122(W) x 77(H) x 24(D) (mm)
Item Spec
Processor ARM Core
Memory Extension : Nand Flash 64Mbyte
Internal : Flash 256Kbyte, Ram 48Kbyte
USB Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral UART Output 1 channel
(Rx, Tx, GND 3pin communication)
GPS Module U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
Frequency : L1 1574.42MHz
LTE Module Quectel : BG96 (SKT / LG U+)
LED 2 LED (Status Display)
G sensor Sensing extension shock
Power Voltage Input, DC 8V ~ 75V
Ampare Min : 200㎃ ~Max : 1.5A
Temperature - 20℃ ~80℃
Dimensions 83(W) x 62(H) x 17(D) (mm)
