Solution

AI

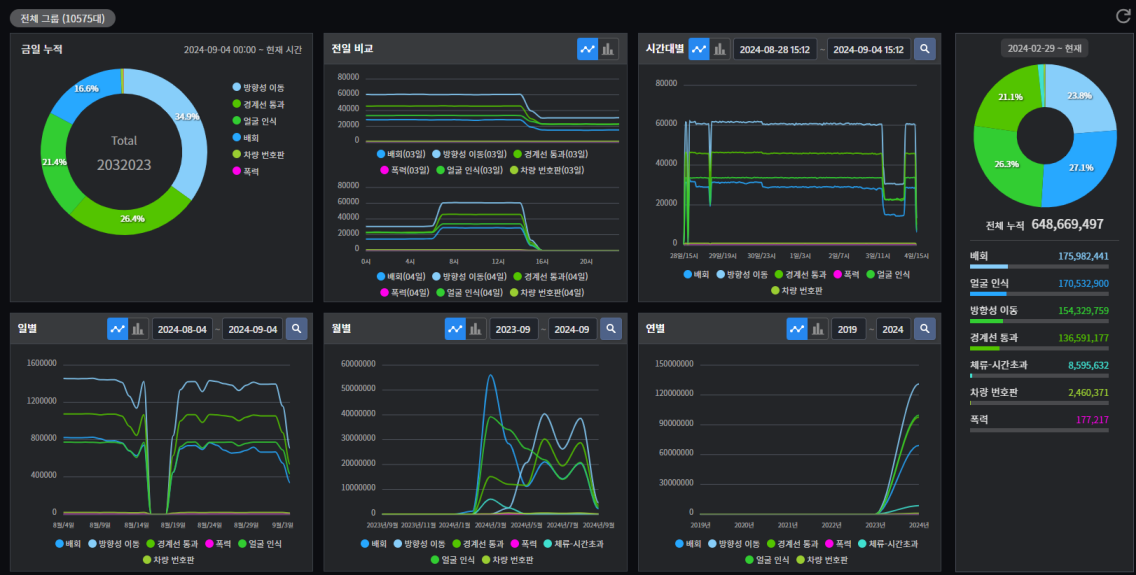

AI Analysis Platform
We collect structured and unstructured data, analyze it, and derive insights through visualization.
Decision-making support is enabled based on models optimized for various industry data.

Deep Learning-Based Solutions
Advanced deep learning technologies enable automation in prediction, classification, and detection.
They enhance responsiveness to complex problems and provide flexible processing systems tailored to different situations.

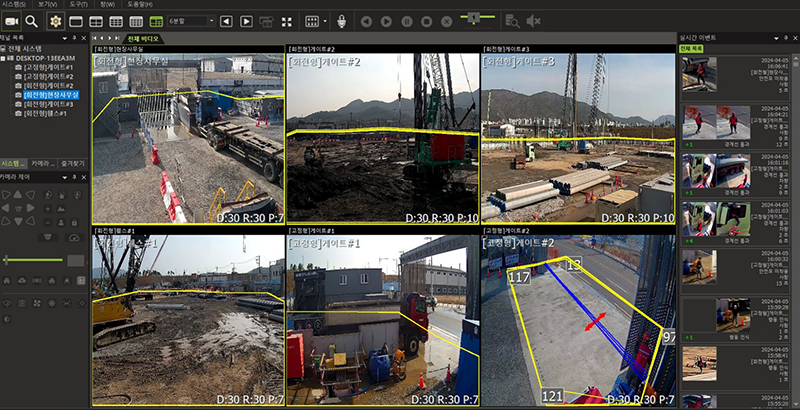

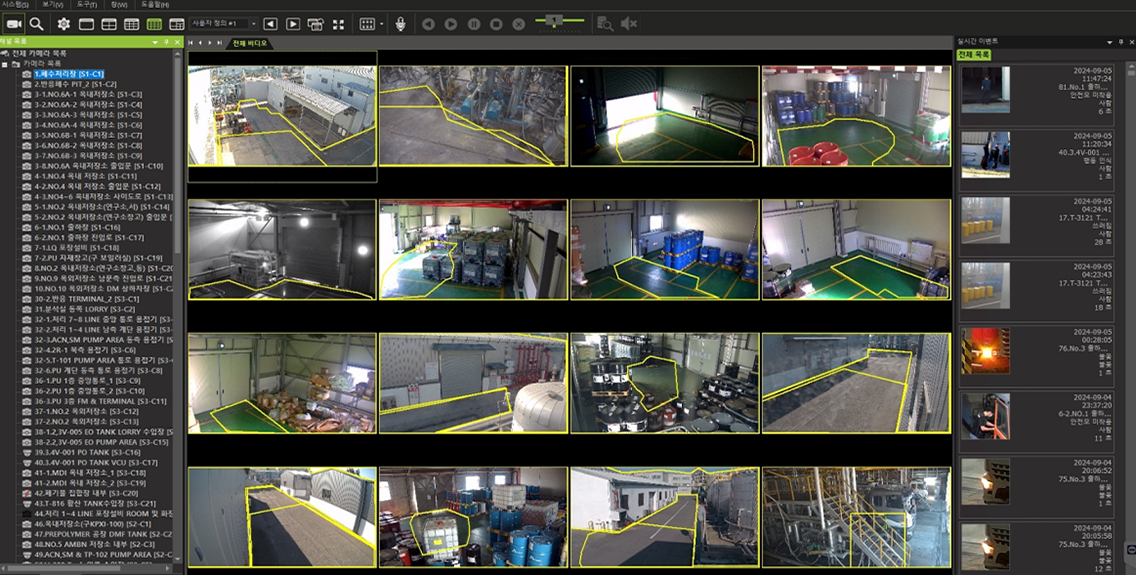

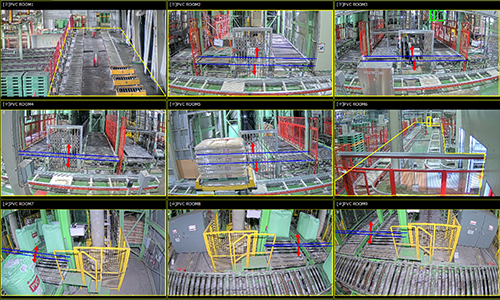

Video and Audio AI Technologies

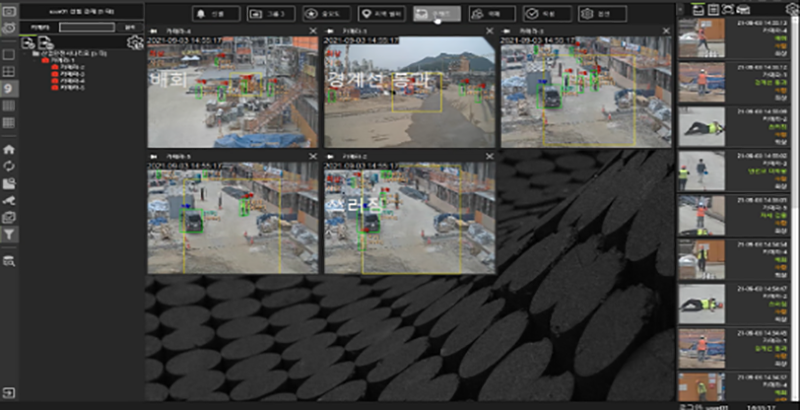

By utilizing video analysis (e.g., object recognition, abnormal behavior detection) and speech recognition technologies, smart monitoring and control are possible across various industrial sites.

Solution

SI

Integrated Platform Development
We integrate complex system environments to design a unified platform where tasks are seamlessly connected.
The platform is structured to align with the company’s work processes, ensuring operational efficiency and data consistency.

Web and Mobile Systems
We develop web and mobile-based systems with a focus on user accessibility and convenience.
Through responsive UI/UX, we provide a consistent user experience across various devices.

Infrastructure Deployment, Operation, and Technical Support
We provide maintenance, monitoring, and technical support to ensure stable operation after system deployment.
We further ensure long-term operational reliability through incident response, security management, and more.

Solution

Industrial Safety Management

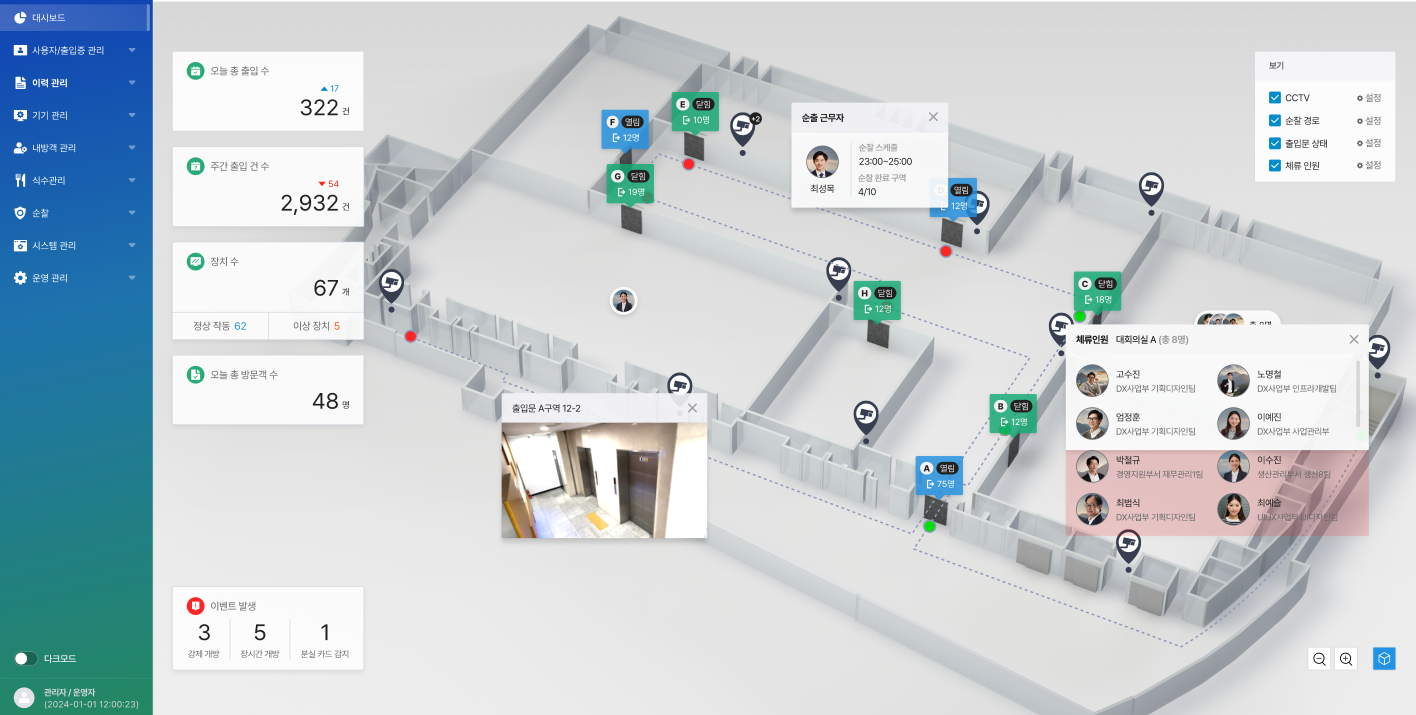

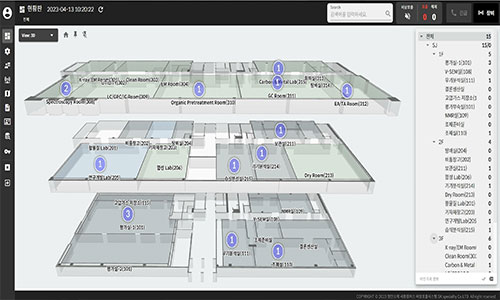

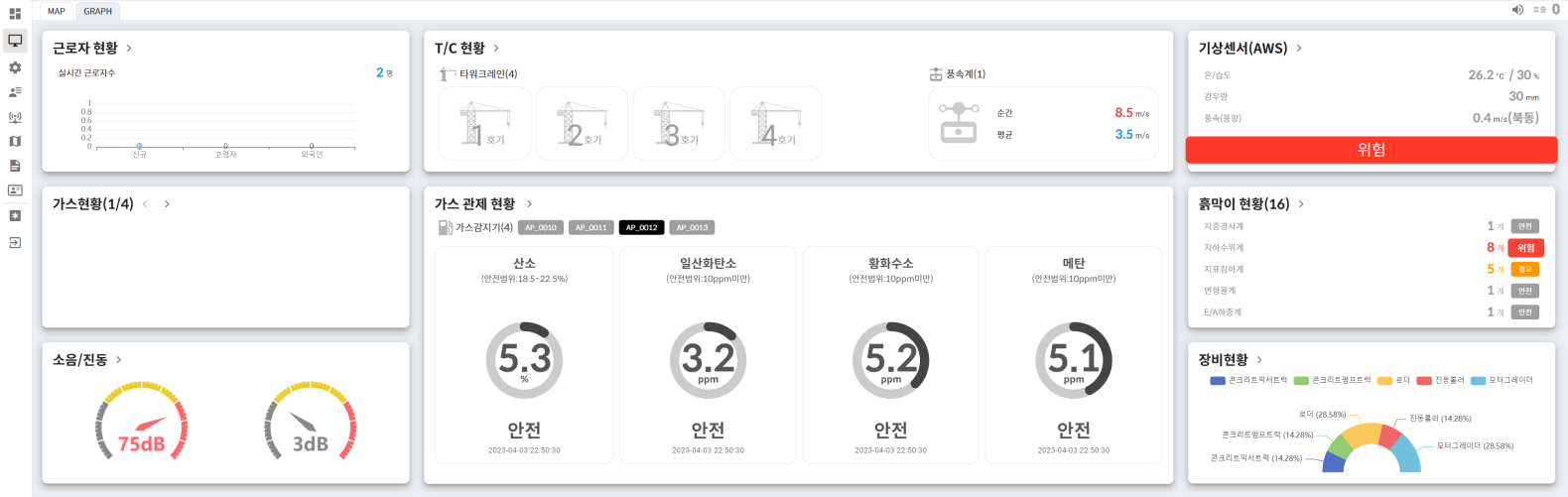

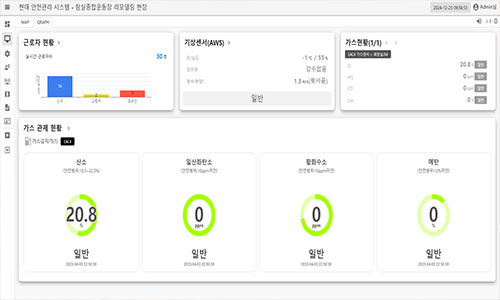

Smart Safety Monitoring
Based on sensors, IoT, and video equipment, we monitor workers’ safety conditions and surrounding environments in real time.
Our systems are designed to detect hazards in advance and enable rapid response.
Automatic Abnormality Alerts
When abnormalities such as temperature changes, gas leaks, or movements are detected, immediate alerts are sent to managers.
By enabling rapid awareness of hazardous situations, accident prevention effectiveness and work safety is maximized.
Safety Consulting and System Implementation
We provide safety management systems tailored to the characteristics of each industry and environment.
Based on regulatory compliance and effectiveness, we offer customized design and implementation consulting.

Solution

Vehicle Location Control

Our vehicle monitoring system allows real-time tracking of vehicle location and status via communication terminals on PCs and smart devices, and supports efficient vehicle management by analyzing driving information.
This service integrates digital thermographs, OBD, temperature recorders, navigation systems, and more, with vehicle monitoring terminals to provide vehicle data tailored to customer requirements.

Directions

Room 303, 3rd floor, Ace Pyeongchon Tower, 361 Simin-daero, Dongan-gu, Anyang-si, Gyeonggi-do

Item	Spec
Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz CHIP RATE
Acquisition Engine	51 Channel
Tracking Engine	14 Channel
Position	2.5m CEP
Velocity	0.1 m/s
Time pulse	1PPS
Protocol	NMEA-0183 Version 3.01
Hot Start	<1sec., Autonomous
Warm Start	<29sec., Autonomous
Cold start	<29sec., Autonomous
Tracking Sensitivity	-161dBm typical
Re-acquisition	-157dBm typical
Cold start	-148dBm typical
Altitude	18,000m (Max)
Velocity	515m/s (Max)
Acceleration	Less than 4G
Voltage	+5V ±0.3V
Supply current Tracking	40mA 5V DC typical
Backup Battery Power	3.0V / 10uA (include)
Elrctrical interface	Full dupiex serial communication
Baud Rate	9,600bps, 8, 1, n
Navigation updata rate	1Hz
Protocol Message	NMEA-0183
Operation range	-30℃ ~ +85℃
Storage range	-40℃ ~ +85℃
Relative humidity	5% ~ 80%

Item	Spec
Processor	ARM Core
Memory	Extension : Nand Flash 64Mbyte
Memory	Internal : Flash 256Kbyte, Ram 48Kbyte
USB	Full speed (12Mbit/s) -Mass Stroage used (client)
Peripheral	UART	Output 2 channel
	UART	(Rx, Tx, GND 3pin communication)
	GPS Module	U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
	GPS Module	Frequency : L1 1574.42MHz
	LTE Module	LIMEI : LML-M101 (LG U+)
	I/O	Internal Input 3 Button (button input)
	I/O	External Input 4 Port
	Bluetooth	V2.1 + EDR (Opion)
	LED	6 LED (Status Display)
	G sensor	Sensing extension shock
	CAN	SN65HVD230 - 3.3V supply, 370uA
Power	Voltage	Input, DC 8V ~ 75V
Power	Ampare	Min : 200㎃ ~Max : 1.5A
Temperature	- 20℃ ~80℃
Dimensions	122(W) x 77(H) x 24(D) (mm)

Item	Spec
Processor	ARM Core
Memory	Extension : Nand Flash 64Mbyte
Memory	Internal : Flash 256Kbyte, Ram 48Kbyte
USB	Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral	UART	Output 2 channel
	UART	(Rx, Tx, GND 3pin communication)
	GPS Module	U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
	GPS Module	Frequency : L1 1574.42MHz
	LTE Module	Quectel : BG96 (SKT)
	LTE Module	Teladin : TM700 (KT)
	I/O	Internal Input 3 Button (button input)
	I/O	External Input 4 Port
	Bluetooth	V2.1 + EDR (Opion)
	LED	6 LED (Status Display)
	G sensor	Sensing extension shock
	CAN	SN65HVD230 - 3.3V supply, 370uA
Power	Voltage	Input, DC 8V ~ 75V
Power	Ampare	Min : 200㎃ ~Max : 1.5A
Temperature	- 20℃ ~80℃
Dimensions	122(W) x 77(H) x 24(D) (mm)

Item	Spec
Processor	ARM926EJ-S-Embedded Linux
Memory	Nand Flash 125Mbyte
Memory	Ram 125Mbyte(DDR2)
USB	Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral	UART	Output 2 channel
	UART	(Rx, Tx, GND 3pin communication)
	GPS Module	U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
	GPS Module	GPS Frequency : L1 1574.42MHz
	LTE Module	LIMEI : LML-M101 (LG U+)
	I/O	Internal Input 3 Button (button input)
	I/O	External Input 4 Port
	Bluetooth	V2.1 + EDR (Opion)
	LED	6 LED (Status Display)
	G sensor	Sensing extension shock
	CAN	SN65HVD230 - 3.3V supply, 370uA
	Ethernet	10/100 BASE-T (1-Port)
Power	Voltage	Input, DC 8V ~ 75V
Power	Ampare	Min : 220㎃ ~Max : 1.5A
Temperature	- 20℃ ~80℃
Dimensions	122(W) x 77(H) x 24(D) (mm)

Item	Spec
Processor	ARM Core
Memory	Extension : Nand Flash 64Mbyte
Memory	Internal : Flash 256Kbyte, Ram 48Kbyte
USB	Full speed (12Mbit/s) - Mass Stroage used (client)
Peripheral	UART	Output 1 channel
	UART	(Rx, Tx, GND 3pin communication)
	GPS Module	U-blox 7(GPS) / U-blox 8(GPS+GLONASS) : 65 channel
	GPS Module	Frequency : L1 1574.42MHz
	LTE Module	Quectel : BG96 (SKT / LG U+)
	LED	2 LED (Status Display)
	G sensor	Sensing extension shock
Power	Voltage	Input, DC 8V ~ 75V
Power	Ampare	Min : 200㎃ ~Max : 1.5A
Temperature	- 20℃ ~80℃
Dimensions	83(W) x 62(H) x 17(D) (mm)
